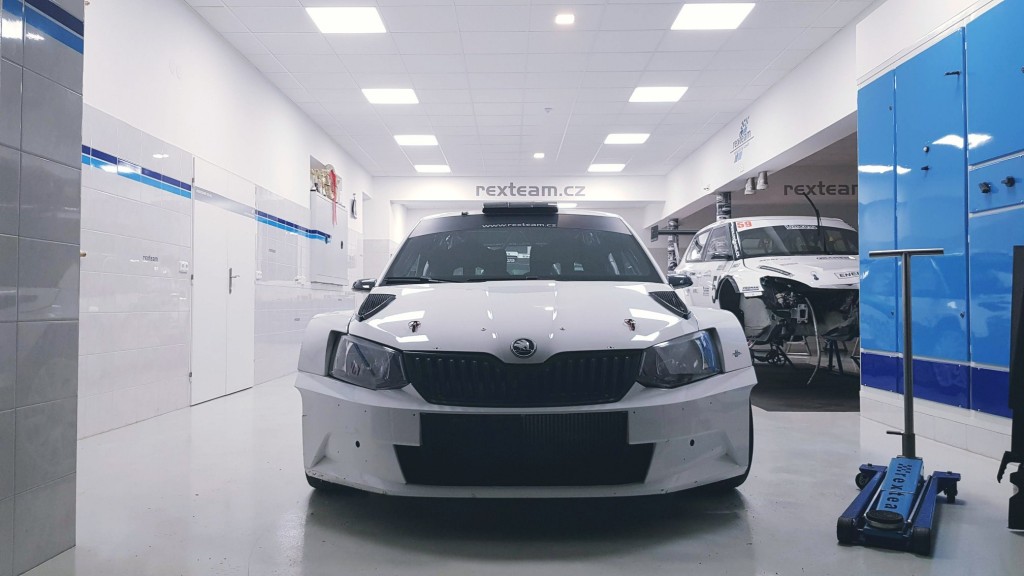

Škoda Fabia R5
Bodywork
Number of bodywork: 41B
Bodywork made in: 2018 at Škoda Motorsport
Car built in: 2017 at Škoda Motorsport
Premiere: Rallye Régional de Balagne 2017
Minimum weight(limit FIA): 1230 kg
Engine
Type: supercharged inline-four engine with DOHC steering system (16valves) placed at the front, direct injection
Capacity: 1620 ccm
Power/ Torque: 205 kW / 420 Nm
Transmission
Drive: constant propulsion system of all wheels
Clutch: dry 2-plate Sachs
Gearbox: 5-speed sequential Xtrac
Front differential gear: mechanical self-locking
Center differential: no differential gear used
Rear differential gear: mechanical self-locking
Chassis
Suspension: special strut axle McPherson, bottom A-arms
Stabilizers: twistlock
Shock absorbers: Sachs with coil springs H-R
Wheels: O.Z. Racing 8Jx18″ (tarmac), 7Jx15 (gravel and snow)
Brakes
Front (tarmac): disc brakes Brembo, air-cooled discs with the diameter of 355 mm
Front (tarmac): disc brakes Brembo, air-cooled discs with the diameter of 300mm
Rear(tarmac and gravel): disc brakes Brembo, air-cooled discs with the diameter of 300 mm
Parking brake: hydraulic with the possibility of disconnecting the propulsion of the back axle
Electronics
Type: electronically controlled ignition, injection and supercharging
Producer: Magnetti Mareli
Fuel
Tank capacity: 82,5 l
Fuel consumption during a special stage: 0,6 l/km
